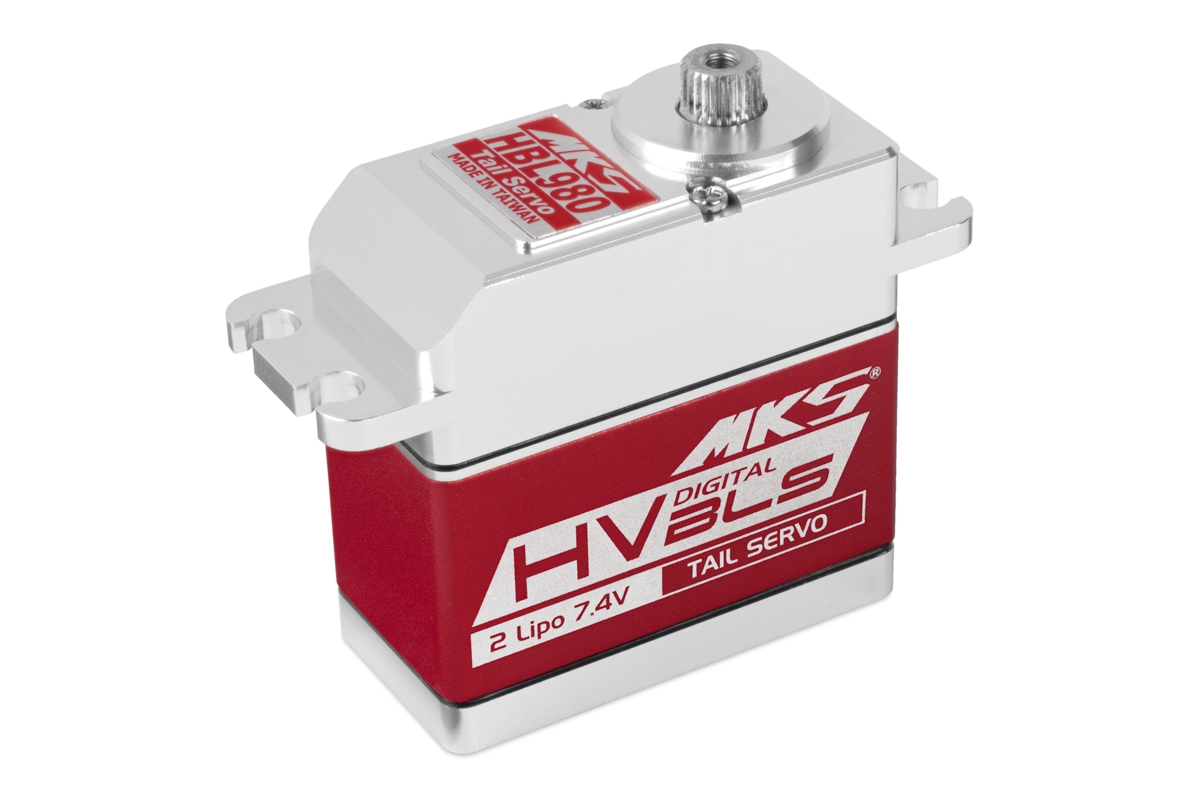

Ultra high speed 70g HV digital narrowband (760µs) brushless standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for tail rotors of 550-800 class helicopters, compatible with most of 760µs gyro and flybarless systems. Torque 4.5kg.cm, speed 0.040s/60° at 6.0V, torque 5.6kg.cm, speed 0.036s/60° at 7.4V, torque 6.2kg.cm, speed 0.030s/60° at 8.2V. Aluminium case for perfect heat dissipation. Dimensions 40x20x40mm, weight 70.29g. Non-programmable.
Ultra high speed narrowband (760µs) digital standard brushless servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 550-800 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.
Input voltage range 6.0-7.4 V (nominal).
| Servo dimensions | Standard |
| Servo type | Digital |
| Programmable | No |
| Torque at 6.0V [kg∙cm] | 4.5 |
| Torque at 7.4V [kg∙cm] | 5.6 |
| Torque at 8.2 V [kg∙cm] | 6.2 |
| Speed at 6.0V [s/60st.] | 0.04 |
| Speed at 7.4V [s/60st.] | 0.036 |
| Speed at 8.2 V [s/60st.] | 0.03 |
| Control pulse width in neutral [µs] | 760 |
| Frame Rate [Hz] | 560 |
| Deadband [ms] | 0.0004 |
| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | Yes |
| Power supply [V] | 6 – 8.4 |
| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 40 |
| Weight [g] | 70.29 |
| Intended for | Helicopters |
| Servo motor type | Brushless |
