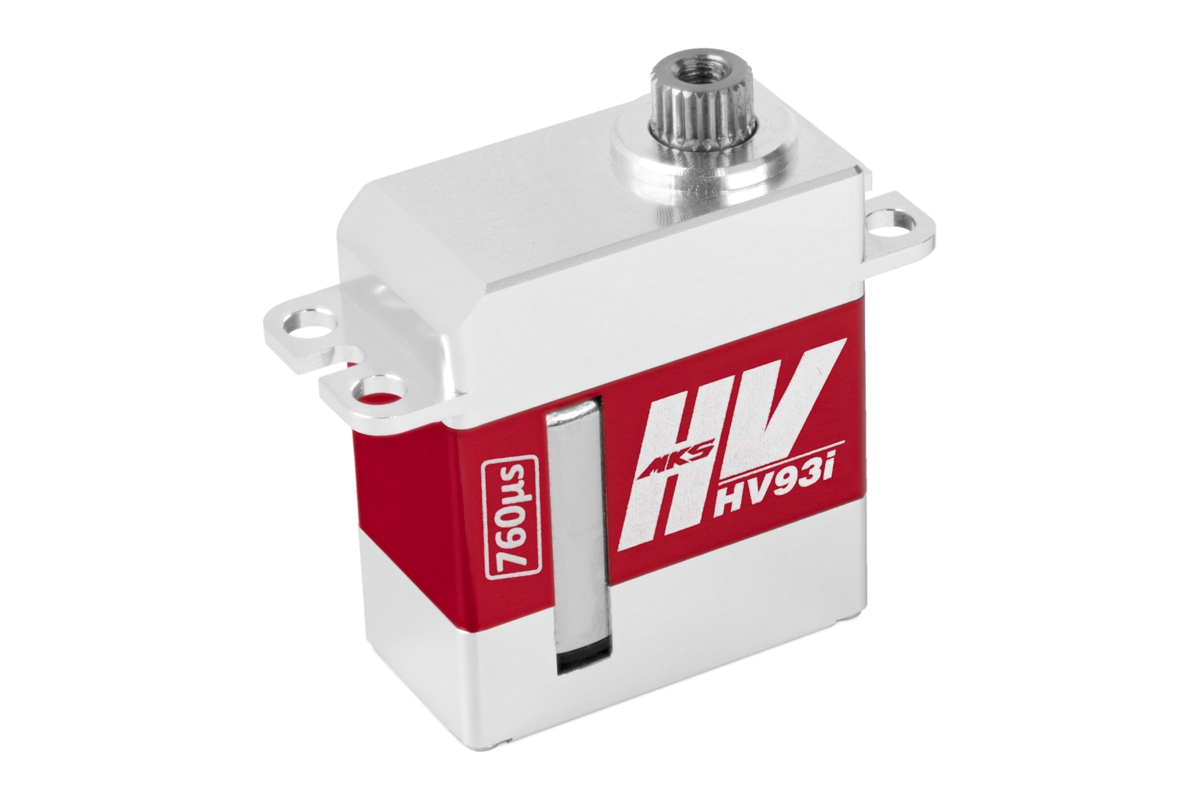

Ultra high speed narrowband (760µs) digital micro servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 380-420 class mini helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.
Input voltage range 6.0-7.4 V (nominal).
| Servo dimensions | Micro |
| Servo type | Digital |
| Programmable | No |
| Torque at 6.0V [kg∙cm] | 1.8 |
| Torque at 7.4V [kg∙cm] | 2.3 |
| Torque at 8.2 V [kg∙cm] | 2.6 |
| Speed at 6.0V [s/60st.] | 0.043 |
| Speed at 7.4V [s/60st.] | 0.035 |
| Speed at 8.2 V [s/60st.] | 0.031 |
| Control pulse width in neutral [µs] | 760 |
| Frame Rate [Hz] | 560 |
| Deadband [ms] | 0.0005 |
| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | Yes |
| Power supply [V] | 6 – 8.4 |
| Length [mm] | 23 |
| Width [mm] | 12 |
| Height [mm] | 27.25 |
| Weight [g] | 19.87 |
| Intended for | Helicopters |
| Servo motor type | HV Coreless |
