Very high torque/very high speed programmable digital standard brushless servo with metal gears and twin ballraced output shaft. Ideal for cyclic of 600-800 class helicopters. An aluminium case for perfect cooling even under high loads.
Input voltage range 6.0-7.4 V (nominal).
Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal – Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.
| Servo dimensions | Standard |
| Servo type | Digital |
| Programmable | Yes |
| Torque at 6.0V [kg∙cm] | 13.3 |
| Torque at 7.4V [kg∙cm] | 16.5 |
| Torque at 8.2 V [kg∙cm] | 18.18 |
| Speed at 6.0V [s/60st.] | 0.12 |
| Speed at 7.4V [s/60st.] | 0.1 |
| Speed at 8.2 V [s/60st.] | 0.09 |
| Control pulse width in neutral [µs] | 1520 |
| Frame Rate [Hz] | 333 |
| Deadband [ms] | 0.0008 |
| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | Yes |
| Power supply [V] | 6 – 8.4 |

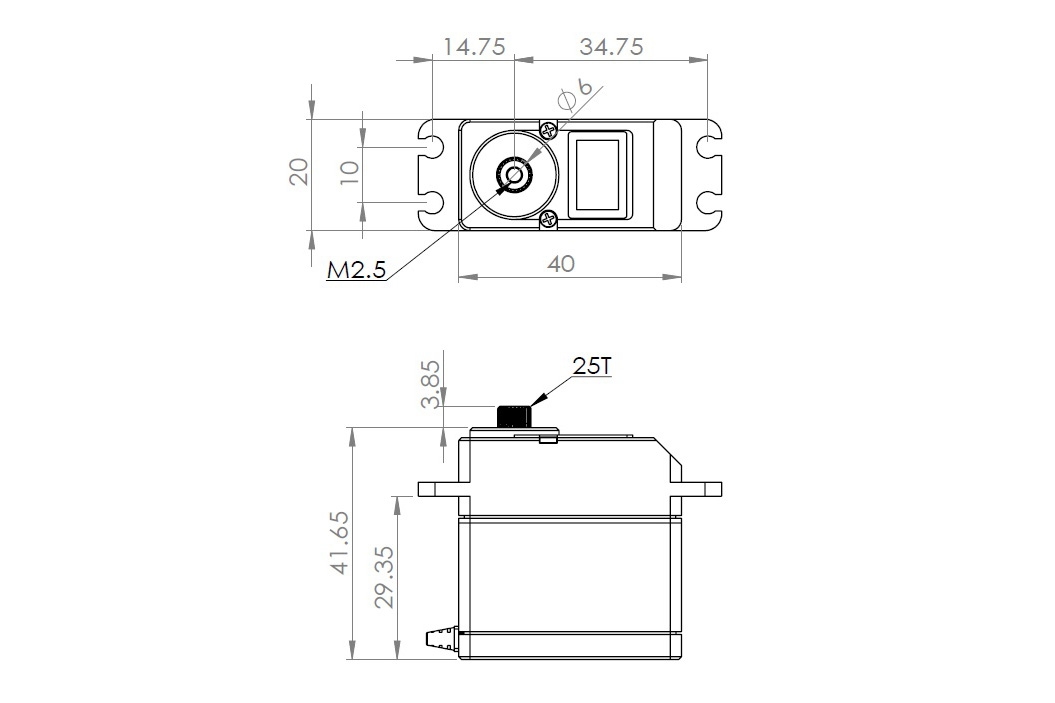

| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 40 |
| Weight [g] | 70 |
| Intended for | Aeroplanes,Helicopters |
| Servo motor type | Brushless |
